Remote Displays

The Ultimate HDD Command Center
The touchscreen Aurora remote display is the ultimate command center designed with HDD Operators in mind. Faster data speed, longer range, and packed with everything you need to safely and easily navigate the underground.

AF8

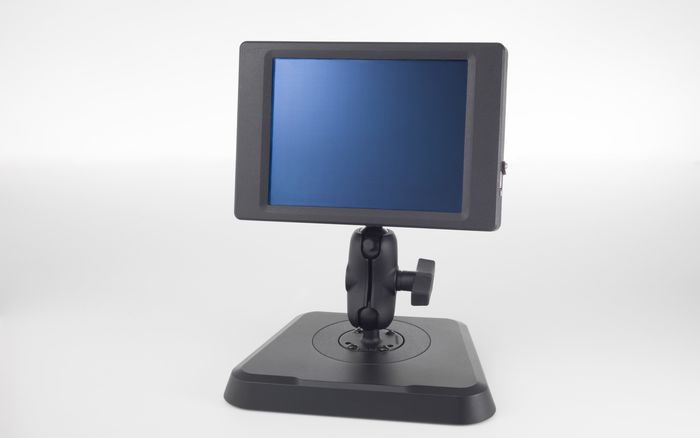

The Aurora 8.4-in display is available freestanding or panel-mounted. The robust, color touchscreen supports LWD Live, Target Steering, and other applications that increase jobsite productivity.

  • Display Details8.4-in Touchscreen
  • Telemetry Range1800 ft

Aurora Preloaded Apps

Better visibility, more capability, and increased reliability. The Aurora comes ready to work with a core suite of apps. Additional apps and system updates are available over Wi-Fi.

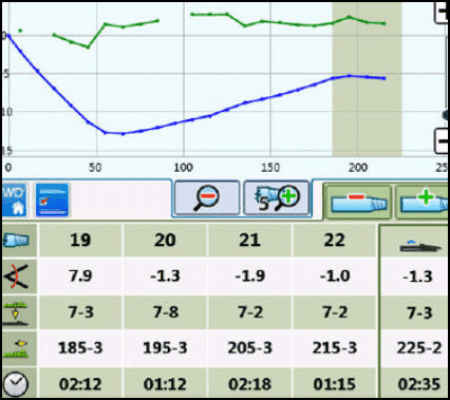

LWD Live

LWD Live lets you graph rod-by-rod details of your bore in real-time to give you a complete view of your pilot bore. When coupled with R1 plan data with additional information about the terrain and utilities, graphing your path visually compares your planned and drilled bore.

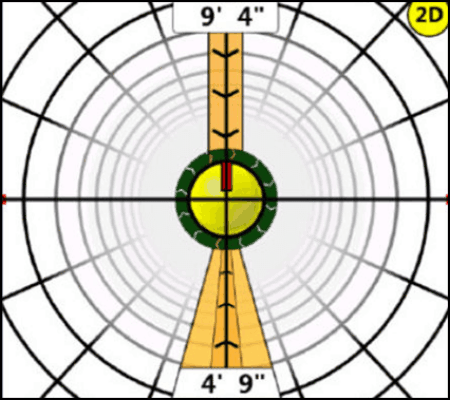

Target Steering

The Target Steering app lets locating specialists place the Falcon receiver ahead of the drill head and create a “steering target”. Target steering is very beneficial in challenging situations where walk-over locating is unsafe or impractical. The estimated projected depth shows the depth the drill head is projected to be at when it reaches the destination below the locator at the current pitch.


Configure

The Configure App manages both your LWD Live and Bore Plan files. Receive R1 bore plan data from the mobile app, create and set up LWD Live jobs, and delete older jobs. Configure is the go-to app for job management.

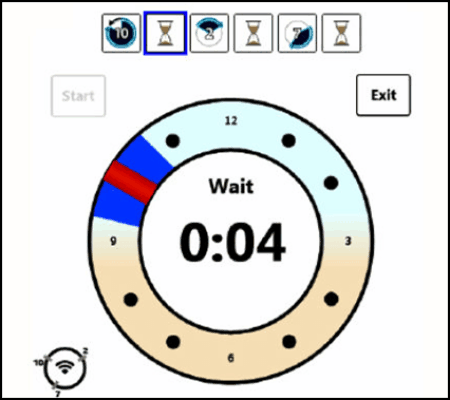

Frequency Change

The Frequency Change app guides the drill rig operator through changing the transmitter frequency band below ground using different rotation sequences. Get step-by-step guidance on switching between bands using the 10-2-7 method or the Repeating Roll Sequence (RRS3) method.

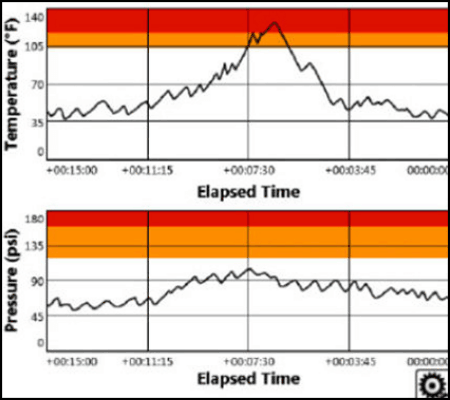

Strip Chart

The Aurora Strip Chart app lets you monitor temperature and/or fluid pressure data over time. The data is continually updated on a graph that includes the warning and critical levels you specified in the alarm settings.


Falcon Compact Display

The FCD is a rugged, entry-level display. A good choice for pit launchers and mini drills, its range also allows for longer shots.

  • Power Source: Li-ion or NiMH battery pack
  • Display Type: LCD
  • Telemetry Range: 1000 ft (305m)
View Operator's Manual

Resources


Aurora - The Future of HDD

Learn more about our Aurora® remote displays.


Aurora Documentation

Manuals and spec sheets.


Aurora QSG

Aurora Quick Start Guide

Remote Displays and Accessories

Aurora Freestanding 8.4-in Remote Display + Accessories
$6,400
Falcon Compact Display (FCD)
$3,600
Aurora DC Power Cord
$200
Aurora Battery Power Adaptor
$350
Aurora Long Whip Antenna
$150
Aurora Inline Filter for use with Long Whip & Yagi Antenna
$125
Aurora 13-in TNC Telemetry Antenna
$35
Aurora 13-in Filtered TNC Telemetry Antenna
$150
Aurora AF10 Carry Case
$400
Aurora AF8 Carry Case
$400
Aurora AP8 Retrofit Kit
$175
AF10 Mobile Docking Station
$250
AF10 Drill Docking Station with 2.25-in RAM® Mount
$500
Falcon Compact Display (FCD) Long Whip Antenna
$150
Falcon Compact Display (FCD) Inline Filter for use with Long Whip & Yagi Antenna
$125
Falcon Compact Display (FCD) 13-in BNC Telemetry Antenna
$35
Falcon Compact Display (FCD) 13-in Filtered BNC Telemetry Antenna
$150
DigiTrak carry case (FCD + accessories configuration)
$600
System Carry Case for Falcon receiver, AF8, and accessories
$800
Screen Cover for AF8 & AP8
$20
